RATE & TOTALIZER CONTROLLER METER

(Analogy Input)(48x96mm)



Features



1. Model: MRT

2. Display range 0 to 19999 (instant amount), 0 to 999999999

    (cumulative amount)

3. Accuracy 0.1% full scale ± 1 digit

4. The time base of instantaneous quantity and cumulative quantity can be arbitrarily planned (1 or 60 or 3600 seconds)

5. The highest display value of the instant quantity can be arbitrarily

    planned (0 to 19999)

6. The total input pulse number within the time base can be arbitrarily planned

7. The scale of input pulse wave scale of cumulant can be adjusted arbitrarily

8. With root number opening function

9. Two groups of alarm functions

10.15 BIT isolated analog output

11. RS-485 interface

12. CE certification



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mrt.jpg




RATE & TOTALIZER CONTROLLER METER

(Pulse Input)(48x96mm)



Features



1. Model: MFRT

2. Display range 0 to 19999 (instant amount), 0 to 9999999999 cumulative amount

3. Accuracy 0.03% full scale (instant amount)

4. Frequency input range 0.01Hz to 10KHz

5. The time base of instantaneous quantity and cumulative quantity can be

    arbitrarily planned (1 or 60 or 3600 seconds)

6. The maximum display value of the instant quantity can be arbitrarily planned

    (0 to 19999)

7. The total input pulse number within the time base can be arbitrarily planned

8. The scale adjustment of the input pulse wave of the cumulant can be

    arbitrarily planned

9. With two alarm functions

10.15 BIT isolated analog output

11. RS-485 interface

12. CE certification






PULSE/ANALOG INPUT FLOW RATE / TOTALIZER METER (48x96mm)



Features



1. Model: MAFRT

2. Accuracy: 0.05% full scale ±1 digit

3. It can measure and display instantaneous quantity

   (5 digits)/cumulative quantity (10 digits) at the same time

4. Five flow unit lights can be set and displayed

5. Four time bases: 1S/60S/3600S/86400S can be arbitrarily planned

6. With the function of instantly measuring the root number

7. With 16-segment linear compensation function

8. Four groups of alarm functions

9. 16 BIT isolated analog output

10. RS-485 interface








PULSE/ANALOG INPUT FLOW RATE/TOTALIZER/BATCH COTROLLER (Two-Stage)METER (48x96mm)



Features



1. Model: MRT-B

2. Accuracy: 0.05% full scale ± digits

3. It can simultaneously measure and display instantaneous quantity

   (5 digits)/batch (6 digits)/cumulative quantity (10 digits)

4. Five flow unit lights can be set to display TON/M3/Liter/GAL/CC

5. Four time bases can be arbitrarily planned (1 or 60 or 3600 or 86400 seconds)

6. Batch control adopts pre-load pre-stop setting

7. Batch control can be planned with up or down counting mode

8. The panel has a start/stop/batch reset button function

9. Protection level NEMA4/IP64CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mmc.jpg




Microcomputer Length & Flow Control Meter



Features



1. Model: MMC

2. Display range-19999 to 99999 digits

3. The highest input frequency is 10KHz

4. Counting speed 50, 500, 5000 pulses/sec selectable

5. Four input modes can be selected (addition, subtraction, addition

    and subtraction, 90 degree phase difference addition and subtraction)

6. The 90 degree phase difference addition and subtraction calculation

    has the function of increasing the resolution by 4 times

7. The input pulse wave has a preset scale function

8. Two groups of alarm functions

9. 15 BIT analog output function

10. RS-485 interface

11. CE certification








Microcomputer Length & Flow Control Meter



Features



1. Model: MMCH

2. Display range-19999 to 99999 digits LED 0.8"

3. Maximum input frequency 50KHz

4. Counting speed 50, 500, 5000 pulses/sec selectable

5. Five input modes can be selected (front/rear edge trigger addition,

   addition and subtraction, directional addition and subtraction, 90 degree

    phase difference addition and subtraction)

6. The 90 degree phase difference addition and subtraction calculation has

    the function of increasing the resolution by 4 times

7. The input pulse wave has a preset scale function

8. Four groups of alarm functions

9. 15 BIT analog output function

10. RS-485 interface

11. CE certification








Microcomputer Length & Flow Control Meter

(24x48mm)



Features



1. Model: MMCS

2. Display range-19999 to 99999 digits

3. The highest input frequency is 10KHz

4. Four input modes can be selected (addition, subtraction, addition and

    subtraction, 90 degree phase difference addition and subtraction

5. The 90 degree phase difference addition and subtraction calculation has

    the function of increasing the resolution by 4 times

6. The input pulse has a preset scale function

7. Two groups of alarm functions

8. 16BIT analog output function

9. RS-485 interface

10. CE certification







Microcomputer Length & Flow Control Meter

(72x72mm)



Features



1. Model:MMC726

2. NPN/PNP pulse input type can be set arbitrarily

3. Display range-19999 to 99999 digits

4. The highest input frequency is 50KHz

5. Counting speed 50/50000 pulse wave/sec selectable

6. Five input modes can be selected (front/rear edge trigger addition,

    subtraction, addition and subtraction, directional addition, 90 degree

    phase difference addition and subtraction

7. The 90 degree phase difference addition and subtraction calculation

    has the function of increasing the resolution by 4 times

8. The input pulse wave has a preset scale of 0.0001 to 9.999 function

9. Four groups of alarm functions

10. 16 BIT analog output function

11. RS-485 interface

12. Protection level NEMA4/IP67





Microcomputer Length & Flow Control Meter

(48x48mm)



Features



1. Model: MMC48

2. Display range-19999 to 99999 digits

3. The highest input frequency is 50KHz

4. Counting speed 50/50000 pulse wave/sec selectable

5. Five input modes can be selected (front/rear edge trigger addition,

   addition and subtraction, directional addition and subtraction, 90 degree

    phase difference addition and subtraction)

6. The 90 degree phase difference addition and subtraction calculation has

    the function of increasing the resolution by 4 times

7. The input pulse wave has a preset scale of 0.0001 to 9.999 function

8. Two groups of alarm functions

9. 16BIT analog output function

10. RS-485 interface

11. Protection grade NEMA4/IP65

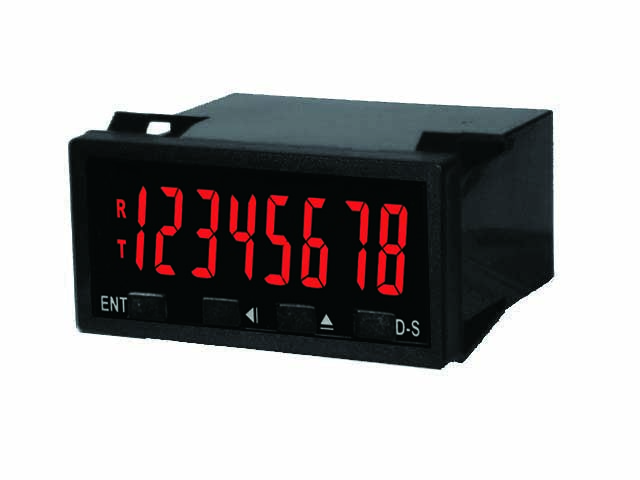

RATE & TOTALIZER CONTROLLER METER

(Pulse Input)(24x48mm)



Features



1. Model: MFRTS

2.Self-power,measuring pulse input ,display rate and totalizer

3. Programmable rate 0 to 99999 digit(rate),0 to 99999999 digit(totalizer)

4. Accuracy 0.05% F.S.(rate)

5. Input range form 0.01Hz to 1KHz

6. Programmable time base 1 or 60 or 3600 second

7. Dimension small (24x48x48.5mm) and High stability

8. Discrete terminal,connector easy

9. CE EMC certification
