5-Digit microcomputer type panel meter

(24X48mm)



Features



1. Model: MMS

2. Accuracy 0.1% full scale ±1 digit

3. It can measure AC/DC current/AC/DC voltage

   /potentiometer/transmitter/Pt-100/thermocouple/load cell

   /resistance and other signals

4. Display range -19999-99999 can be arbitrarily planned

5. With automatic zero function

6. The decimal point can be arbitrarily planned

7. Small size, high stability

8.CE certification



描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMS-H.jpg



5-Digit microcomputer type panel meter (LCD) (24X48mm)



 Features



1.Model: MMS-H

2. Accuracy: 0.05% full scale ±1 digit

3. It can measure AC/DC current/AC/DC voltage

   /potentiometer/transmitter/Pt-100/thermocouple (J/K/T/E/R/S/B)

   /load cell/resistance and other signals

4. Display range -19999~ 99999 can be arbitrarily planned

5. The decimal point can be arbitrarily planned

6.Small size (24*48*50mm), high stability

7. Power supply range: AC/DC 20-260V, 5VDC, 10-30VDC

8.CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMS-L.gif




3-1/2 Digit Panel Type AC/DC Voltmeter

(24X48mm)



Features



1. Model: MMS-LDAC

2. Accuracy 0.1% full scale ± 1 digit

3. No additional power supply is required

4. Can measure AC and DC voltage (AC/DC 20-265V)

5. Separate terminal, easy wiring

6.Small size (24*48*50mm), high stability

7. CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMS-L.gif



3-1/2 Digits microcomputer type panel meter

(24X48mm)



Features



1. Model: MMS-L

2. Accuracy 0.1% full scale ±1 digit

3. It can measure AC/DC current/AC/DC voltage/potentiometer/transmitter

   /Pt-100/thermocouple/load cell/resistance and other signals

4. Display range 0 ~ ±1999 can be arbitrarily planned

5. The decimal point can be arbitrarily planned

6.Small size (24*48*50mm), high stability

7. CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMS-H.jpg




5 Digit panel 4~20mA loop display meter (24X48mm)



Features



1. Model: MA24-LL

2. Accuracy: 0.05% full scale ± 1 digit

3. Display digits: -19999~99999, self-planning

4. It can directly measure the DC current of 4-20mA, without

   additional auxiliary power supply

5.Separate terminal, easy wiring

6.Small size (24*48*50mm), high stability

7.CE certification







5-Digit microcomputer type panel meter (LED)

(24X48mm)



Features



1. Model: MMS-5

2. Accuracy: 0.05% full scale ±1 digit

3. It can measure AC/DC current/AC/DC voltage/potentiometer/transmitter

   /Pt-100/thermocouple (J/K/T/E/R/S/B)/load cell/resistance and other signals

4. Display range -19999~ 99999 can be arbitrarily planned

5. The decimal point can be arbitrarily planned

6. Small size (24*48*50mm), high stability

7. Power supply range: AC/DC 20-260V, 5VDC, 10-30VDC

8. CE certification



MMS-6



6-Digit microcomputer type panel meter (24X48mm)



Features



1. Model: MMS-6

2. Accuracy: 0.05% full scale ±1 digit

3. It can measure AC/DC current/AC/DC voltage

    /potentiometer/transmitter/Pt-100/thermocouple

   (J/K/T/E/R/S/B)/load cell/resistance and other signals

4. Display range -199999~ 999999 can be arbitrarily planned

5. The decimal point can be arbitrarily planned

6.Small size (24*48*50mm), high stability

7. Power supply range: AC/DC 20-260V, 5VDC, 10-30VDC

8. CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mr.gif



5-Digit frequency digital electric meter



Features



1. Model: MF

2. Accuracy 0.01% of full scale

3. Measurable AC frequency/DC pulse frequency

4. Maximum input frequency 50KHz

5. The position of the decimal point can be arbitrarily planned

6.Small size and high stability

7. Low price

8. CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\m1.gif



3-1/2 Digit Panel Type Digital Meter



Features



1. Model: M1

2. Accuracy 0.1% full scale ± 1 digit

3. It can measure AC/DC current/AC/DC voltage

   /potentiometer/transmitter/Pt-100/Load cell/resistance

   and other signals

4. Display the highest range 0-1999

5. The decimal point can be arbitrarily planned

6.Small size and high stability

7. CE certification



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\m2.gif



4-1/2 Digit Panel Type Digital Meter



Features



1. Model: M2

2. Accuracy 0.1% full scale ± 1 digit

3. It can measure AC/DC current/AC/DC voltage/potentiometer/transmitter

   /Pt-100/Load cell/resistance and other signals

4. Display the highest range 0-19999 (0.56") / 0-9999 (0.8")

5. The decimal point can be arbitrarily planned

6.Small size and high stability

7. CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mr.gif



Microcomputer type speed, line speed display meter

(48X96mm)



Features



1. Model: MR

2. Accuracy 0.01% of full scale

3. Measurable DC pulse wave/magnetic sensor signal

4. Maximum input frequency 50KHz

5. Rotation speed and linear speed can be set arbitrarily

6.Line speed unit meters, feet, yards/minute can be set arbitrarily

7. The sensor input pulse number can be set arbitrarily

8. The position of the decimal point can be set arbitrarily

9. Small size and high stability

10. CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\MMS-C.jpg



Microcomputer type speed, line speed display meter

(24x48mm)



Features



1. Model: MRS

2. Accuracy 0.01% of full scale

3. Measurable DC pulse wave/magnetic sensor signal

4. Maximum input frequency 50KHz

5. Rotation speed and linear speed can be set arbitrarily

6.Line speed unit meters, feet, yards/minute can be set arbitrarily

7. The sensor input pulse number can be set arbitrarily

8. The position of the decimal point can be set arbitrarily

9. Small size and high stability

10. CE certification



描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\mmx.gif



 5-Digit microcomputer type panel meter (LED 0.8")



Features



1. Model: MMX-1

2. Accuracy 0.1% full scale ± 1 digit

3. It can measure AC/DC current/AC/DC voltage

   /potentiometer/transmitter/Pt-100/thermocouple/load cell

   /resistance and other signals

4. Display range -19999-99999 can be arbitrarily planned

5. With automatic zero function

6. The decimal point can be arbitrarily planned

7. Small size, high stability

8. CE certification

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mm1.gif



5-Digit microcomputer type panel meter (LED 0.56")



Features



1. Model: MM1

2. Accuracy 0.1% full scale ± 1 digit

3. It can measure AC/DC current/AC/DC voltage/potentiometer/transmitter

/Pt-100/thermocouple/load cell/resistance and other signals

4. Display range -19999-99999 can be arbitrarily planned

5. With automatic zero function

6. The decimal point can be arbitrarily planned

7. Small size, high stability

8. CE certification








 Dual display AC and DC voltage & ammeter (80X42mm)



Features



1. Model: 4AM-P

2. Accuracy 0.1% full scale ± 1 digit (DC)

3. Accuracy 0.1% full scale ± 1 digit (AC)

4. Display range -1999-9999 can be arbitrarily planned

5. The decimal point can be arbitrarily planned

6.Small size and high stability

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\mm8a.jpg



6 Display Analog / (RTD&TC) signal input panel meter



Features



1. Model: MM8A

2.The accuracy is 0.05% full scale ±1 digit.

3. It can simultaneously measure and display six sets of DC voltage/current

   /Pt-100/thermocouple... and other signals.

4. The display range -1999-9999 can be arbitrarily planned.

5. The number of groups (1 to 6) can be arbitrarily planned.

6. Digital RS-485 Modbus RTU







A Operation Manual

B Operation Manual

C Operation Manual

D Operation Manual





 LED Bargraph single light beam display instrument



Features



1. Model: LB800

2. Applicable temperature, flow, pressure, height,

    liquid level and other instructions

3. Single beam 101 line 75mm

4. Size 96x48 mm , Power DC12-24V or AC220V

5. Input DC0-5V/1-5V/0-10V or DC4-20mA/0-20mA

6. LED color red, green, green/red, red/green optional

7. Input impedance <100 ohm

8. LED display length 75 mm

9. LED display width 4 mm

10. Error +/- 1%

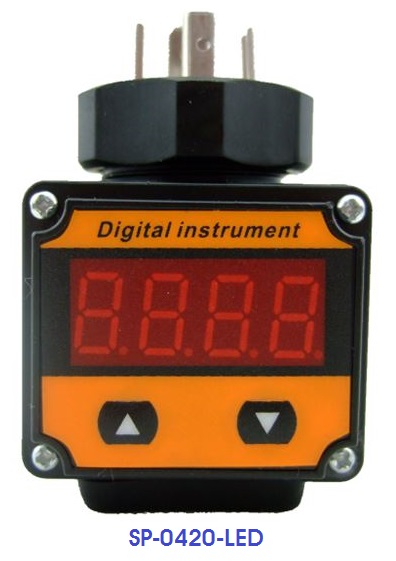

4-Digit LED pressure field indicator



Features



1.Model: SP-0420-LED

2.The pressure indicator can be used with any brand pressure transmitter,

3.Display digits: programmable -1999 ~ 9999 LED display,

4.The decimal point can be arbitrarily planned,

5.Input signal: 4~20mA (loop power supply),

6.Accurate value: ±0.25% ±1digit, ambient temperature: -10~50,

7.Installation method: DIN 43650,

8.LCD series has unit display function, Bar, Kpa, Mpa, PSI, %,'C, M

SP-0420-LCD




4-Digit LCD pressure field indicator



Features



1.Model: SP-0420-LCD

2.The pressure indicator can be used with any brand pressure transmitter,

3.Display digits: programmable -1999 ~ 9999 LED display,

4.The decimal point can be arbitrarily planned,

5.Input signal: 4~20mA (loop power supply),

6.Accurate value: ±0.25% ±1digit, ambient temperature: -10~50,

7.Installation method: DIN 43650,

8.LCD series has unit display function, Bar, Kpa, Mpa, PSI, %,'C, M



SP-0420-6-LCD





5-Digit LCD pressure field indicator



Features



1.Model: SP-0420-5-LCD

2.The pressure indicator can be used with any brand pressure transmitter,

3.Display digits: programmable -19999 ~ 99999 LED display,

4.The decimal point can be arbitrarily planned,

5.Input signal: 4~20mA (loop power supply),

6.Accurate value: ±0.25% ±1digit, ambient temperature: -10~50,

7.Installation method: DIN 43650,

8.LCD series has unit display function, Bar, Kpa, Mpa, PSI, %,'C, M




LED Big Display Meter



Features



1. Application environment: public places such as archives, factories,

   freezers, exhibition venues, stores, stations, office

    environments...etc.

2. The input signal is optional, such as: 4-20mA, 0-10V...RS485

3. Single-layer, multi-layer, double-sided display mode can be

    selected

4. High brightness 2.5" or 4" high LED display

5. With deviation correction function

6. 3~6 digit display

7. Working range: -10~65

8. Supply voltage: 110~220V
