Microcomputer type AC power control meter



Features



1. Model: MMP

2. Accuracy: 0.25% full scale ± 1 digit

3. Can measure 1P2W, 3P3W, 3P4W AC Watt/Val/Power factor/Phase angle

4. Display range 0- ± 19999 can be arbitrarily planned

5. Input and output insulation withstand voltage 2 thousand volts/1 minute

6. Surge test intensity 4 thousand volts (1.2x50us)

7. 2 groups of alarm functions

8.15BIT analog output function (

9. Digital RS-485 interface

10. CE certification



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mrt.jpg



Microcomputer AC W/KWH (VAR/KVARH) electric meter



Features



1. Model: MPH

2. Accuracy: 0.25% full scale ±1 digit

3. Display range 0-19999 (instant amount), 0-999999999 (cumulative amount)

4. The highest display value (0-19999) of the instant quantity can be

    arbitrarily planned

5. The cumulative ratio of the cumulative amount can be arbitrarily

    planned (0.0001-99999.9999)

6. Input and output insulation withstand voltage of 2 thousand volts/1 minute

7. Surge test intensity 4 thousand volts (1.2x50us)

8. Two groups of alarm functions

9.15 BIT isolated analog output

10. Digital RS-485 interface

11. Digital pulse output

12. CE certification





 DC multifunctional integrated meter

(DC: A, V, KW, KWH)



Features



1. Model: MM2D-DT

2. Accuracy 0.03% full scale ±1 digit

3. It can measure and display DC voltage/current/watt/watt hour

    at the same time

4. Display range 0 to 99999 (instant amount) 0 to 9999999999

    (cumulative amount) can be arbitrarily planned

5. 4 groups of alarm functions

6.16BIT analog output function

7. Digital RS-485 interface

8. CE certification






Simple multifunctional integrated power meter



Features



1. Model: MMP-3S

2. Accuracy ±0.15% of full scale

3. Simultaneous measurement and display of V / A/ KW / KWH / HZ / FS

4. AC voltage, current, and watts are all true effective values (TRMS)

5. The input wiring system can be arbitrarily selected 1P2W/1P3W/3P3W/3P4W

6. CT ratio (1~9999) and PT ratio (1.0~999.9) can be set arbitrarily

7. 3 Group alarm control function

8. Digital RS-485 interface

9. CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMP-3VI.jpg





Three-phase AC Voltage & Current meter



Features



1. Model: MMP-3VI

2. Accuracy 0.15% of full scale

3. It can simultaneously measure and display three-phase

    AC phase voltage, line voltage, current

4. Surge test intensity 4 thousand volts

5. Manual and automatic display modes can be arbitrarily planned

6. 3 groups of alarm control functions

7. Digital RS-485 interface

8. CE certification





Three-phase AC voltage/current meter



Features



1. Model: MMP-VI

2. Accuracy 0.15% of full scale

3. It can simultaneously measure and display three-phase

    AC phase voltage, line voltage, current

4. Measure the harmonic distortion rate (THD) of voltage harmonics /

    current harmonics to the 31st harmonic

5. CT ratio and PT ratio can be set arbitrarily (1 to 9999)

6. Surge test intensity 4 thousand volts

7. 4 groups of alarm control functions

8. Digital RS-485 interface

9. CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMP-2.jpg



Multifunctional integrated power meter



Features



1. Model: MMP-2

2. The input wiring system can be arbitrarily selected

    1P2W/1P3W/3P3W/3P4W

3. Simultaneously measure and display phase voltage, line voltage,

   current, real power, virtual power,Power factor, frequency, thousand

    watt hours, demand

4. With pulse signal output and provide alarm contact output function

5. CT ratio and PT ratio can be set arbitrarily

6. With RS485 Modbus communication interface function

7. Manual and automatic display modes can be arbitrarily planned

8. 2 groups of alarm control functions

9. 2 sets of pulse output function

10. CE certification

描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\MMP-2.jpg



Multifunctional integrated power meter (harmonic function)



Features



1. Model: MMP-2H

2. The input wiring system can be arbitrarily selected 1P2W/1P3W/3P3W/3P4W

3. Simultaneously measure and display phase voltage, line voltage, current, real

    power, virtual power,Power factor, frequency, thousand watt hours, demand

4. It can measure and display AC voltage and current harmonic distortion rate

    (THD) to the 35th harmonic at the same time

5. With pulse signal output and provide alarm contact output function

6. CT ratio and PT ratio can be set arbitrarily

7. With RS485 Modbus communication interface function

8. Manual and automatic display modes can be arbitrarily planned

9. 2 groups of alarm control functions

10. 2 sets of pulse output function

11. CE certification








LCD simple integrated power meter



Features



1.Model: ZPM-100D

2. LCD liquid crystal display, screen with backlight

3. The input wiring system can be arbitrarily selected 3P3W/3P4W

4. Simultaneously measure and display phase voltage, line voltage,

    current, real power, virtual power, power factor, frequency, thousand

   watt hours

5. CT ratio and PT ratio can be set arbitrarily

6. With RS485 Modbus communication interface function





LCD Multifunctional integrated power meter



Features



1. Model: ZPM-800

2. LCD liquid crystal display, screen with backlight

3. The input wiring system can be arbitrarily selected 1P2W/1P3W/3P3W/3P4W

4. Simultaneously measure and display phase voltage, line voltage, current, real

   power, virtual power,Power factor, frequency, thousand watt hours, demand,

    harmonics

5. With pulse signal output and provide alarm contact output function

6. CT ratio and PT ratio can be set arbitrarily

7. With RS485 Modbus communication interface function

8. With 4DI, 2DO (Relay) function

9. With inductive or capacitive load indication

10. Provide free power monitoring software









     WiringManualCommunication





LCD Three-phase AC Ammeter

Features



1. Model: ZPM-100A

2. Accuracy 0.5% full scale

3. It can measure and display three-phase AC current at the same time

5. CT ratio can be set arbitrarily

6. Surge test intensity 4 thousand volts

7. Optional switch input, relay output

8. Optional 4-20mA and RS485 Modbus RTU output




LCD Three-phase AC Voltmeter



Features



1. Model: ZPM-100B

2. Accuracy 0.5% full scale

3. It can measure and display three-phase AC voltage at the same time

5. PT ratio can be set arbitrarily

6. Surge test intensity 4 thousand volts

7. Optional switch input, relay output

8. Optional 4-20mA and RS485 Modbus RTU output

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\mmxp1.jpg



Single-phase AC integrated electric meter

(A, V, KW, VA, PF, HZ)



Features



1. Model: MMX-P1

2. Accuracy 0.01% of full scale

3. It can display AC voltage, current, frequency and watt at the same time

4. CT ratio can be set arbitrarily (1-999)

5. RS485 interface function

6.CE certification





Single-phase AC integrated electric meter

(A, V, KW, KWH, PF, HZ)



Features



1.Model: MMP-1

2. Accuracy 0.1% of full scale

3. It can simultaneously measure and display AC voltage/current/(thousand) watt/power factor/frequency/(thousand) watt-hour

4. AC voltage, current, and watts are all true effective values (TRMS)

5. Surge test intensity 4 thousand volts (1.2x50us)

6. 4 groups of alarm control functions

7. Digital RS-485 interface

8.16BIT analog output function

9.CE certification

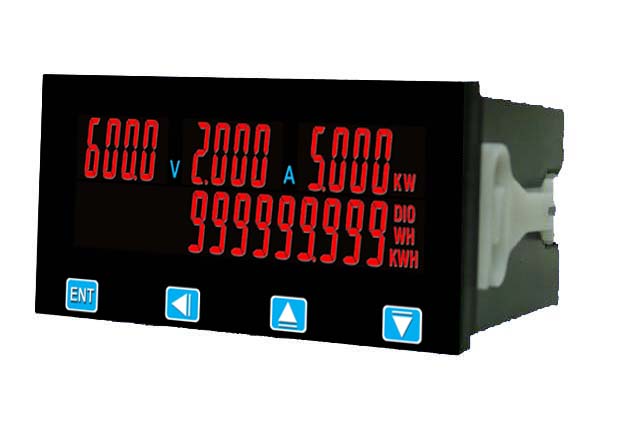

MMX-D



Integrated DC power meter (Smart 485/Low Power)



Features



1. Model: MMX-D

2. Accuracy: 0.05% full scale ±1 digit

3. Simultaneous measurement and display / DC voltage / current / watt

    (Thousand watts) / Watt hour (Thousand Watt hours)

4. Voltage input (DC0~99.99V/0~600.0V) automatic shift function

5. Display range 0 to 9999 (current watts thousand watts), 0 to 99999999

   (8-digit watt-hour can be arbitrarily planned)

6. Digital RS-485 interface

7. CE certification

8. Power supply 12, 24, 48VDC





Digital motor overload and pump idling protector



Features



1. Model:MCM726

2. Pump idling protection to prevent motor overload

3. Accuracy 0.15% of full scale ±1 digit

4. The wiring system for input measurement can be selected arbitrarily

   (1P2W, 3P3W)

5. With start delay and alarm delay function (0 to 99.9 seconds)

6. With abnormal current alarm retention function

7. With two independent alarm relay reset keys

8. 2 groups of alarm functions

9. Digital RS-485 interface

10. Protection grade NEMA4/IP67

描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\AXe-1.gif



Socket type 8 in 1 AC precision power monitor (backlight)



Features



1. Model: AXE-1

2. Accuracy ±0.1% of full scale

3. Simultaneous measurement and display (A, V, KW, KWH, PF,

    HZ, VA, Time)

4. AC voltage, current, and watts are all true effective values

5. Alternating current, watts, volt-ampere, power consumption, power time

    all have automatic shift function

6. Over current (>15A) and over temperature (>65) automatic

     protection function

7. Super large white LED display screen, character height 16.3mm

8. Impulse voltage/current test 6KV/3VA(1.2x50us)



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\AXe-1.gif



Socket type 8 in 1 AC precision power monitor

(backlight)



Features



1. Model: AXE-2

2. Accuracy ±0.1% of full scale

3. Simultaneous measurement and display (A, V, KW, KWH, PF, HZ, VA, Time)

4. AC voltage, current, and watts are all true effective values

5. Alternating current, watts, volt-ampere, power consumption, power time

    all have automatic shift function

6. Over current (>15A) and over temperature (>65) automatic

    protection function

7. Super large white LED display screen, character height 16.3mm

8. Impulse voltage/current test 6KV/3VA(1.2x50us)

9. A set of load relay control function

10. Digital RS-485 interface



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\axe-0-b.jpg



Socket type 8 in 1 AC precision power monitor

(no backlight)



Features



1. Model: AXE-0

2. Accuracy ±0.1% of full scale

3. Simultaneous measurement and display (A, V, KW, KWH, PF, HZ,

    VA, Time)

4. AC voltage, current, and watts are all true effective values

5. Alternating current, watts, volt-ampere, power consumption, power time

    all have automatic shift function

6. Over current (>15A) and over temperature (>65) automatic

    protection function

7. Super large LED display screen, character height 16.3mm

8. Impulse voltage/current test 6KV/3VA(1.2x50us)



描述: 描述: 描述: 描述: 描述: D:\Allen 我的文件\My Webs\winling web\transmitter\MC24-C.jpg



6 in 1 single-phase AC integrated power meter (24x48mm)



Features



1. Model: MMS-P

2. Accuracy 0.1% of full scale

3. Simultaneous measurement and display (A, V, KW, KWH, PF, HZ)

4. AC voltage, current, and watts are all true effective values

5. Surge test intensity 4 thousand volts (1.2x50us)

6.Small size (24x48x48.5mm), high stability

7. Separate terminal, easy wiring
