SP Series Pressure Transmitter

◆Features:

1. Easy to install, compact structure, compact size
2. European imported ceramic piezoresistive sensing components
3. Measurable GAUGE pressure / vacuum pressure
4. Suitable for use with contact materials without strong acid and

    alkali gas liquid
5. Air compressors, various types of pumps, hydraulic machines,

    water treatment plants, waterworks
6. Pressure Specifications: -1~250 Bar
7. Output: 4-20mA ( 2-Wires)
8. Interface: 1/4PT, 1/4NPT, 1/2NPT
9. Working temperature: -20 ~ 85°C
10. Accuracy: 0.25%, 0.5%
11. Power Supply: 10-30VDC

SPD2 Series Digital Pressure Transmitter

◆Features:

1. Microcomputer digital type, can customize the pressure output via internal
    parameters
2. European imported ceramic piezoresistive sensing components
3. The sensor head uses a ceramic piezoresistive pressure element with
     stainless steel (SUS316)
4. Suitable for use with contact materials without strong acid and alkali gas
     liquid
 5. Air compressors, various types of pumps, hydraulic machines, water
     treatment plants, waterworks
6. Seven kinds of pressure units can be arbitrarily set bar, Kg/cm2, KPa, MPa
     PSI, mmHg, inHg
7. Has the highest value and the lowest value memory retention function
8. Strong output load capacity up to 800 ohms at 24Vdc
9. Degree of protection NEMA4/IP65
 6. Pressure Specifications: -1~250 Bar
 7. Output: 4-20mA ( 2-Wires)
8. Interface: 1/4PT, 1/4NPT, 1/2NPT
 9. Working temperature: -20 ~ 85°C
10. Accuracy: 0.25%, 0.5%
11. Power Supply: 10-28VDC

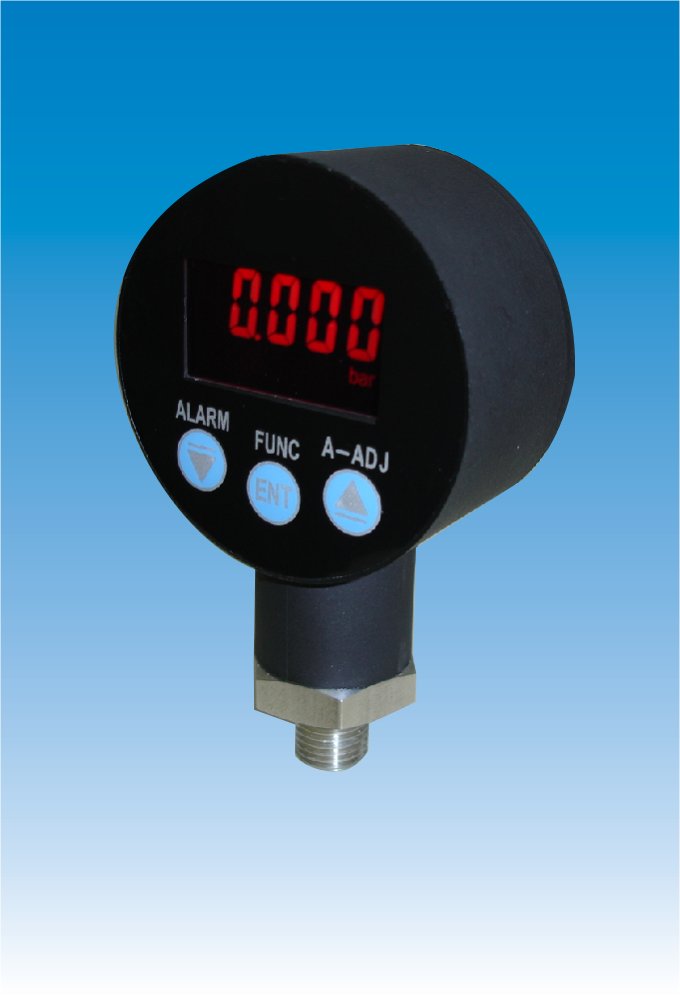

SPD3 Series Digital Pressure Transmitter

◆Features:

1. Microcomputer digital type, can customize the pressure output via

   internal parameters

2. European imported ceramic piezoresistive sensing components

3. The sensor head uses a ceramic piezoresistive pressure element with

  stainless steel (SUS316)

4. Suitable for use with contact materials without strong acid and alkali gas

     liquid

5. Air compressors, various types of pumps, hydraulic machines, water

   treatment plants, waterworks

6. Seven kinds of pressure units can be arbitrarily set bar, Kg/cm2, KPa, MPa

    PSI, mmHg, inHg

7. High alarm effect, the display screen automatically changes color (red/green)

     when the alarm is activated

8.2 group alarm function, RS485 Modbus RTU, 16BIT analog output function

9. Degree of protection NEMA4/IP65

6. Pressure Specifications: -1~250 Bar

7. Output: 4-20mA ( 2-Wires)

8. Interface: 1/4PT, 1/4NPT, 1/2NPT

9. Working temperature: -20 ~ 85°C

10. Accuracy: 0.25%, 0.5%

11. Power Supply: 10-28VDC


A-10 Industrial Grade Pressure Transmitter

◆Features:

1. Corrosion resistant stainless steel design
 2. European imported ceramic piezoresistive sensing components
3. Measurable GAUGE pressure / vacuum pressure / absolute pressure
4. Suitable for contact with the material compatible with strong acid and
    alkali gas liquid
5. Air compressors, various types of pumps, hydraulic machines, water
    treatment plants, waterworks
6. The contact part with measuring media is stainless steel SUS316
7. Anti-surge, anti-jamming EMC
 8. High Accuracy ±0.5% F.S (with Original Verification Certificate)
9. Pressure Specifications: -1~600 Bar
 10. Output: 4-20mA ( 2-Wires)
11. Interface: 1/4PT
12. Working temperature: -20 ~ 85°C
 13. Power Supply: 10-30VDC


R-1 Pressure Transmitter for Cold Coal System

◆Features:


1. Corrosion resistant stainless steel design
 2. No internal sealing element
3 easy to install, simple structure, compact size
4 high overload stability
5 refrigeration compressor cold coal pressure measurement
6. The contact part with measuring media is stainless steel SUS316
7. Anti-surge, anti-jamming EMC
 8. High accuracy ±0.5% F.S
9. Pressure Specifications: 16, , 40 Bar
 10. Output: 4-20mA ( 2-Wires)
11. Interfaces: 7/16-20 UNF-2A, 7/16-20 UNF-2B
12. Working temperature: -25 ~ 80°C
 13. Power Supply: 7-30VDC

 壓力傳送器		 PM-220 Corrosion Resistant Pressure Transmitter

 ◆Features:

 1. Corrosion resistant stainless steel design
 2. Output 4 ... 20mA, 0 ... 10V, 0.5 ... 4.5V, etc.
 3. Suitable for contact with the material compatible with strong acid and alkali
    gas liquid
 4. Air compressors, various pumps, hydraulic machinery, water treatment
    plants
5. The contact part with measuring media is stainless steel SUS316
6. High accuracy ±0.5% F.S
7. Pressure Specifications: 1.6~25 Bar
 8. Output 4 ... 20mA, 0 ... 10V, 0.5 ... 4.5V etc.
 9. Interfaces: G1/4, G1/2, M20X1.5
10. Working temperature: -20 ~ 85°C
 11. Power Supply: 12-36VDC
衛生級壓力傳送器壓力傳送器 PM-310 clamp flat diaphragm pressure transmitter

◆Features:

 1. Corrosion resistant stainless steel design
 2.Using pressure resistance pressure core manufacturing
3. Suitable for pressure measurement of liquid, gas, and steam media
6. The contact part with measuring media is stainless steel SUS316
7. Anti-surge, anti-jamming EMC
 8. High Accuracy ±0.5% F.S (with Original Verification Certificate)
9. Pressure specifications: 0~100Bar
 10. Output: 4~20mA, 0~10VDC, 1~5VDC ...
 11. PVDF clamp flat membrane structure design pressure interface
12. Working temperature: -20 ~ 85°C
 13. Power Supply: 10-30VDC


壓力傳送器		 A20 Series Pressure Transmitter

◆ Features:

 1. Easy to install, compact structure, compact size
2. Piezoresistive pressure sensor design
 3. Measurable Absolute, gauge and sealed gauge
 4. Applicable to contact with the material of the acid and alkali gas liquid and oil pressure
5. Air compressors, various types of pumps, hydraulic machines, water treatment plants, waterworks
6. Various pressure interfaces and electrical connections can be selected
7. Pressure Specifications: 100mBar~600Bar Various Pressures
8. Output: 4 ... 20mA, 0 ... 10V, 0 ... 5V, 1 ... 5V, 0.5 ... 4.5Vdc
9. Interface: 1/4PT, 1/4NPT, 1/2NPT, G1/4, G1/2, R1/4, M20X1.5
10. Working temperature: -20 ~ 85°C
 11. Accuracy: 0.25%, 0.5%
12. Power Supply: 12-28VDC

壓力傳送器

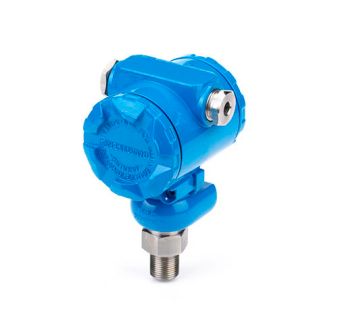

 PM-410 dustproof and waterproof pressure transmitter

◆Features:

1.Using piezoresistive pressure core manufacturing
2. Measuring range: 0~100mbar to 0~600bar
3. Accuracy: +/-0.25%FSO; +/-0.5%FSO
 4 full SUS316L stainless steel body structure + aluminum junction box
5 can add LCD display header
6. Output signal: 4~20mA + HART or RS485
 7. Interface: 1/4PT, 1/4NPT, 1/2NPT, G1/4, G1/2, R1/4, M20X1.5
8. Working temperature: -20 ~ 85°C
 9. Protection level: IP65
10. Power Supply: 12-36VDC

壓力傳送器		 PM-210T High Temperature Pressure Transmitter

◆Features:

 1.Using piezoresistive pressure core manufacturing
2. Measurement range: 0~350mbar to 0~600bar
3. Accuracy: +/-0.25%FSO; +/-0.5%FSO
 4 full SUS316L stainless steel body structure + aluminum junction box
5 can add LCD display header
6. Output signals: :4..20mA, 0..10V, 0..5V, 1..5V, 0.5..4.5Vdc
7. Interface: 1/4PT, 1/4NPT, 1/2NPT, G1/4, G1/2, R1/4, M20X1.5
8. Measuring temperature: 0 ~ 150°C (standard) / 0 ~ 300°C (enhanced)
9. Protection level: IP65
10. Power Supply: 12-36VDC



壓力傳送器		 PM300-E Diaphragm Pressure Transmitter

◆Features:

1. Easy to install, compact structure, compact size
2. Piezoresistive pressure sensor design
3. Measurable Absolute, gauge and sealed gauge
4. Applicable to contact with the material of the acid and alkali gas liquid and oil pressure
5. Air compressors, various types of pumps, hydraulic machines, water treatment plants, waterworks
6. Various pressure interfaces and electrical connections can be selected
7. Pressure Specifications: 100mBar~600Bar Various Pressures
8. Output: 4 ... 20mA, 0 ... 10V, 0 ... 5V, 1 ... 5V, 0.5 ... 4.5Vdc
9. Interfaces: M20X1.5,1, G1/2, G1, 1/2 NPT, 1/2 PT
10. Working temperature: -20 ~ 85°C
11. Accuracy: 0.25%, 0.5%
12. Power Supply: 12-36VDC



壓力傳送器		 PSW100 Mechanical Pressure Switch

◆Features:

1. Measuring range: 0 ~ 600bar
2. High accuracy ± 5% FS
3 switch type: normally open / normally closed type
4. Factory setting or on-site adjustment of switch points
5. Electrical connection: 6.3x0.8 insert
6. Pressure interface can be customized


壓力傳送器		 PSM200 Electronic Pressure Transmitter/Pressure Switch

◆Features:

 1 full metal shell, display head can rotate 0-330 degrees, 4 LED display
2. Output: 4 ~ 20mA, 0 ~ 20mA, 0 ~ 5V, 1 ~ 5V
3 measuring range: 0~600bar
4. Accuracy: ±5%FS
5. Switch type: PNP or NPN can be set, normally open / normally closed
6. Factory setting or on-site adjustment of switch points
7. Electrical connection: 6.3x0.8 insert
 8. Pressure interface can be customized
 9. Working temperature: -20 ~ 85°C
10. Power Supply: 15-30VDC

 1 switch output
2 switch output
1 analog signal output
1 analog signal output + 1 switch output
 1 analog signal output + 2 switch output

液位傳送器



壓力傳送器

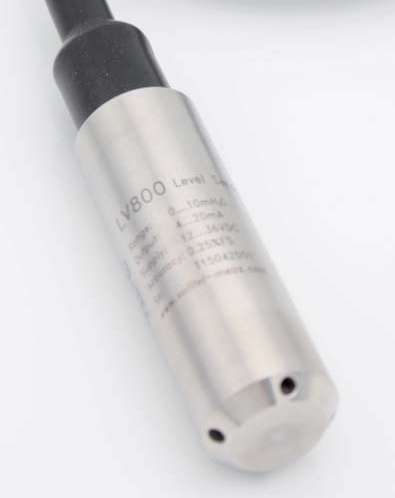

LV800 Level Transmitter

◆Features:

1. Easy to install, compact structure, compact size

2. Piezoresistive film

3. Measurable 0 ~ 1M ~ 10M ~ 200M

4. Suitable for contact with material compatible with strong acid alkali liquid      medium

5. Waterworks, sewage treatment plants, urban water supply, high-rise

   water supply, wells, Industrial pools, water tanks, oil pools,

   reservoirs, rivers, boiler water levels, etc. Liquid static and dynamic

    liquid level measurement

6. Output: 4 ~ 20mA, 0 ~ 20mA, 0 ~ 5V, 1 ~ 5V

7. Working temperature: 0 ~ 60°C

8. Accuracy: ±5%FS

9. Power Supply: 18-36VDC
微差壓傳送器



壓力傳送器		 6800 Differential Pressure Transmitter

◆ Features:

 1.Model: 6800
2. High-precision piezoelectric sensor chip
3. Suitable for air, non-corrosive gases, non-flammable gases
4. Zero correction function
5. With reaction time setting function and range setting switch
6. Small size, easy to install
 7. Measurement range: -100~5000Pa, -0.25~0.5”w.c.
 8. Output: 4-20mA
9. Working power: 10-30VDC
