MICROPROCESS PANEL CONTROLLER METER (DISPLAY 0.56") / Model:MM2
Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter
/Pt-100/Load Cell/Resistor/ect............
Programmable rate 0 to 19999 digit
Auto zero and hold function
Max. four alarm function (optional)
15 bit DAC analog output function (optional)
Digit RS-485 interface function (optional)
@
----------------------------------------------------------------------------------


MICROPROCESS PANEL CONTROLLER METER /

Model:MM2S

Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter
/Pt-100/Load Cell/Resistor/ect............
Programmable rate 0 to 19999 digit
Simulation pushwheel digit switches, easy to operate
Auto zero and hold function
Max. four alarm function (optional)
15 bit DAC analog output function (optional)
Digit RS-485 interface function (optional)

----------------------------------------------------------------------------------

MICROPROCESS PANEL CONTROLLER METER (DISPLY 0.8") / Model:MMX-A
Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter
/Pt-100/Load Cell/Resistor/ect............
Programmable rate -19999 ~99999 digit
Auto zero and hold function
Max. four alarm function (optional)
15 bit DAC analog output function (optional)
Digit RS-485 interface function (optional)

----------------------------------------------------------------------------------

MICROPROCESS PANEL CONTROLLER METER (PUSHWHEEL TYPE) / Model:MMX-AP
Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/Pt-100/Load Cell/Resistor/ect............
Programmable rate -19999 to 99999 digit
Auto zero and hold function
Pushwheel digit switches setting easy to operate
Dimension small and High stability

----------------------------------------------------------------------------------

MICROPROCESS DUAL PANEL CONTROLLER METER /

Model:MM2D

Accuracy 0.1% F.S. 1digit
Dual input measuring and display DCA/DCV/ACA/ACV
Programmable rate 0 to 19999 digit
Two alarm function (Optional)
15 bit DAC analog output function (optional)
Digit RS-485 interface function (optional)

----------------------------------------------------------------------------------

MICROPROCESS RPM & LINE-SPEED CONTROLLER METER / Model:MMR
Accuracy 0.03% F.S.
Measuring Pulse(TTL,CMOS), Magnetic pick-up signal
Accept input rates up to 50 KHz
Display type of RPM or line-speed can be modified
Input pulse of revolution can be modified (1-99999 pulse / revolution)
Two alarm function (Optional)
Multiplier bank analog output function
15 bit DAC analog output function (Optional)
Digit RS-485 interface function (Optional)

----------------------------------------------------------------------------------

MICROPROCESS DUAL INPUT RPM & LINE-SPEED MATHS CONTROLLER METER / Model:MMX-R
Accuracy 0.03% F.S.
Measuring Pulse(TTL,CMOS), Magnetic pick-up signal
Dual input math function B-A,B/A,(B/A)-1,B/(A+B)
Accept input rates up to 50 KHz
Display type of RPM or line-speed can be modified
Input pulse of revolution can be modified
(1-99999 pulse / revolution)
Two alarm function (Optional)
15 bit DAC analog output function (Optional)
Digit RS-485 interface function (Optional)
@
----------------------------------------------------------------------------------

MICROPROCESS RS-485 DISPLAY METER (24*48mm/48*96mm)/ Model:MMX-RS
5 digit RS-485 display meter
Readout range form -19999 to 99999 digit
Modbus RTU mode for RS-485 protocal
Wide input range for auxiliary power
Dimension small and High stability

----------------------------------------------------------------------------------

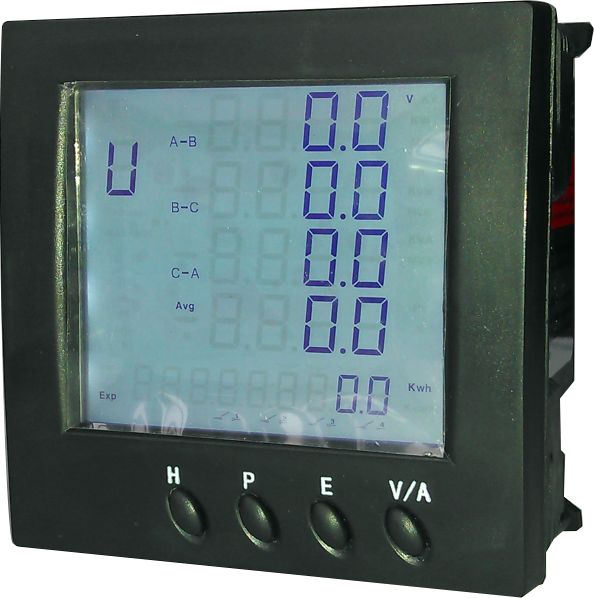

AC POWER METER

 Model:WLPM101

Accuracy 0.5% F.S.
Measuring and display ACV/ACA/Watt/Var/Power factor/Frequency/KWH/DM(Demand)
Input measurement network can be selectives(1P2W/1P3W/3P3W/3P4W)
CT rate/PT rate can be modified(1 to 9999)
alarm control function (optional)
Digit RS-485 interface function
Manual or auto scanning mode can be modified
@

----------------------------------------------------------------------------------

Ultrasonic flowmeter clamp on

 Model: USM-100M

Piping : 15mm-600 mm

Protection Class Transmitter : IP54 (Option Box IP65)

Protection Class Transducer : IP68

Cable : 30 M (Max.)

Display : 2x20 digit alphanumeric backlighted

Output : Sel. 4-20 mA. or 0-20 mA.

displayed Data : instantaneous flowrate , flow totalizer

Mounting : Din-Rail Mount

Communication Protocal : MODBUS RTU or ASCII + (OPT.)

Serial Port : RS485 , RS232

@
@

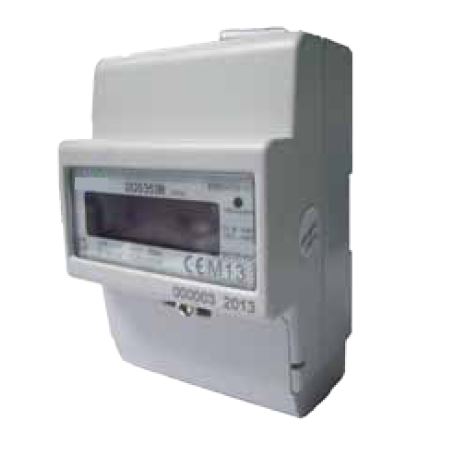

Single Phase Din Rail Energy Meter

 Model: MEC701SP

Suit for 230V AC low voltage system

Measure and display , kWh

5 + 2 digits LCD display (99999.99 kWh)

LED indicates pulse output high. Resolution 1600 IMP/KWH

Password protection

Friendly interface RS485 for programming

Small size: 115*76*65 mm

RS485 port , MODBUS-RTU communication protocol

35mm DIN rail installing, standard DIN ED5002


@
@

@
