3 1/2 DIGITAL PANEL METER OF PROGRAMMABLE /

Model:M1

CAD Drawing
Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter
/Pt-100/Load Cell/Resistor/ect............
Programmable rate 0 to 1999 digit
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


3 1/2 DIGITAL PANEL METER OF PROGRAMMABLE /

Model:M1A

Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter
/Pt-100/Load Cell/Resistor/ect............
Programmable rate 0 to 19999 digit
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


5 DIGIT MICROPROCESS PANEL METER ,24*48mm /

Model:MMS

Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/Pt-100/Load Cell/Resistor/ect............
Programmable rate -19999 to 99999 digit
Auto zero or hold or dual display function (Optional)
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------

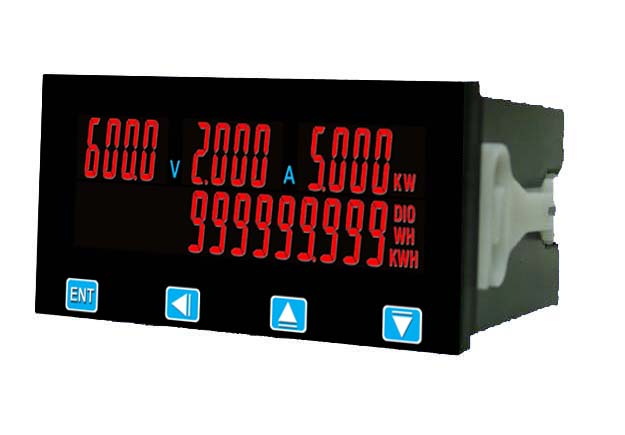

DC MULTI-POWER METER (Low Power)(48x96mm)

Model:MMX-D

Accuracy 0.5% F.S. 1digit
Measuring and display DCV/DCA/W(KW)/WH(KWH)
Auto range (DC0~99.99V/0~600.0V) for voltage input function
Programmable rate 0 to 9999 digit (DCA/W(KW),0 to 99999999 digit (WH(KWH)
Digit RS-485 interface function)(optional)
CE EMC certification

----------------------------------------------------------------------------------


5 DIGIT MICROPROCESS PANEL METER ,48*96mm /

Model:MM1

Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/
Pt-100/Load Cell/Resistor/ect............
Programmable rate -19999 to 99999 digit
Auto zero or hold or dual display function (Optional)
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


5 DIGIT MICROPROCESS PANEL METER (DISPLAY 0.8") /

Model:MMX-1

Accuracy 0.1% F.S. 1digit
Measuring DCA/DCV/ACA/ACV/Potentiometer/Transmitter/Pt-100/Load Cell/Resistor/ect............
Programmable rate -19999 to 99999 digit
Auto zero or hold or dual display function (Optional)
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


MICROPROCESS RPM & LINE-SPEED METER, 24*48mm /

Model:MRS

Accuracy 0.05% F.S.
Measuring Pulse (TTL,CMOS)Magnetic pick-up
Accepts input rates up to 50KHz
Display type of RPM or line-speed can be modified
Display unit M/min Y/min ft/min can be modified
Inpout pulse of revolution can be modified(1-99999)
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


MICROPROCESS RPM & LINE-SPEED METER /

Model:MR

Accuracy 0.01% F.S.
Measuring pulse (TTL,CMOS), Magnetic pick-up
Display type of RPM or line-speed can be modified
Display unit M/min,Y/min,ft/min can be modified
Input pulse of revolution can be modified(1-9999)
Decimal point can be modifed
Dimension small and High stability

----------------------------------------------------------------------------------


MICROPROCESS DC CURRENT AND DC VOLTAGE AND FREQUENCY(PULSE)CALIBRATOR METER /

Model:MDFG

Accuracy 0.05% F.S.
Calibrator for DCmA and DCV and Frequency(Pulse)
Simulator A,B phase different 90 output function
15 bit DAC analog output function
Output range for DC 0 to 20.000mA(DC 0 to 10.000V)
Wide output range for frequency 10Hz to 4KHz
Wide output range for pulse 1 to 10000 count
Dimension small and High stability
----------------------------------------------------------------------------------


DC CURRENT(VOLTAGE) CALIBRATOR PANEL METER /

Model:MDFG-VR


Accuracy 0.1% F.S. 1digit
Display range -1999 to +1999 digit
Calibrator for DCmA and DCV
Potentiometer setting output by front panel,easy to operate
Dimension small and High stability


CAD Drawing

----------------------------------------------------------------------------------

MICROPROCESS 6 CHANNEL ANALOG /RTD&TC INPUT PANEL METER (48x96mm) / Model:MM8A
Accuracy 0.05% F.S.1digit
Measuring six channel DCA/DCV/Pt-100/Thermocouple/etc
Programmable rate -1999 to 9999 digit
Input channel number(1~6) can be modified
Digit Rs-485 interface function (optional)

CAD Drawing

----------------------------------------------------------------------------------
