FY 系列微電腦溫度控制器

　

　

1.動作原理: CPU Base , Microprocess Digital Controller.

2.設定精度: ±0.5% of Set Value.

3.消耗功率: Below 3W

4.使用環境溫度: 10~55℃

5.使用電源: 85~250VAC

6. 輸出選项:


1- Relay, contact, 3A/240VAC
2- Volt, voltage pulse, 20VDC/20mA (SSR)
3- 4~20mA
4- 0~20mA
5- 0~5VDC
6- 0~10VDC
7- 1~5VDC
8- 2~10VDC

7.警報: 18種設定模式(上限.下限.上下限.計時.........等警報)

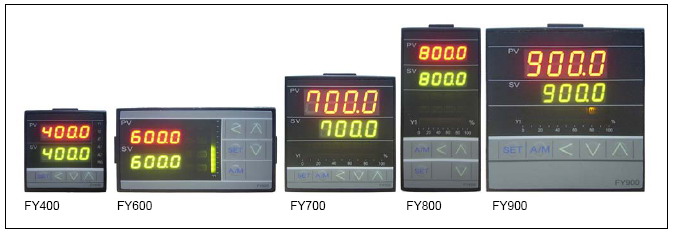

8.形式:

FY400 for 48 x 48mm (DIN 1/16),
FY800 for 48 x 96mm (DIN 1/8)
FY600 for 96 x 48mm (DIN 1/8),
FY900 for 96 x 96mm (DIN 1/4)
FY700 for 72 x 72mm

控制器規格

輸入(selectable)







 Thermocouple B, E, J, K, N, R, S, T, U, W; selectable
RTD PT100 (JIS), PT100(DIN), PT50 (JIS); selectable
DCV 0-10 mV, 0-20 mV, 0-50 mV, 0-1 V, 0-5 V, 0-10 V; selectable
DC mA 0-20 mA, 4-20 mA; selectable
輸出 (1 std, 1 optional)





 Relay Output (standard) SPST 5A/240 VAC
SSR Drive 20 mA / 20 VDC
Current proportioning output 4-20 mA adjustable (maximum load 800 ohm)
警報 1 standard, 2 optional 19 modes (selectable)
控制方式









 On/Off Variable sensitivity
P (proportional) 0-200%, adjustable
I (integral) 0-3600 sec, adjustable
D (derivative) 0-900 sec, adjustable
Fuzzy 49 states considered
電源



 Input voltage 85-265 VAC or 10-50 VDC
Power Consumption 2 VA

訂購選型:

A: Model No:

   溫控器形式
　 FY400 for 48 x 48mm (DIN 1/16),
FY800 for 48 x 96mm (DIN 1/8)
FY600 for 96 x 48mm (DIN 1/8),
FY900 for 96 x 96mm (DIN 1/4)
FY700 for 72 x 72mm
　

E: Transmitter:

    在傳送功能-可選擇傳送PV&SV值
　 0- None
1- 4~20mA (Adjustable)
2- 0~20mA (Adjustable)
A- 0~5VDC (Adjustable)
B- 0~10VDC (Adjustable)
C- 1~5VDC (Adjustable)
D- 2~10VDC (Adjustable)
E- 0~1VDC (Adjustable)
　

B: Out 1 control output mode:

    第一組輸出
　

0- None
1- Relay, contact, 3A/240VAC
2- Volt, voltage pulse, 20VDC/20mA (SSR)
3- 4~20mA
4- 0~20mA
A- 0~5VDC
B- 0~10VDC
C- 1~5VDC
D- 2~10VDC

F: Second Input: (for Remote Set Point)

    遙控輸功能
　 0- None
1- 4~20mA
2- 0~20mA
A- 0~5VDC
B- 0~10VDC
C- 1~5VDC
D- 2~10VDC
E- 0~1VDC


*FY400 無此功能

C: Out 2 control output mode:

    第二組輸出
　 0- None
1- Relay, contact, 3A/240VAC
2- Volt, voltage pulse, 20VDC/20mA (SSR)
3- 4~20mA
4- 0~20mA
A- 0~5VDC
B- 0~10VDC
C- 1~5VDC
D- 2~10VDC

G: Communication:

     通訊功能
　 0- None
1- RS232
2- RS485

　

D: Alarm:

    警報功能
　 0- None (無此功能)
1- One set (一組警報)
2- Two sets (二組警報)
3- Three sets (for FY900/FY800/FY600)

　
